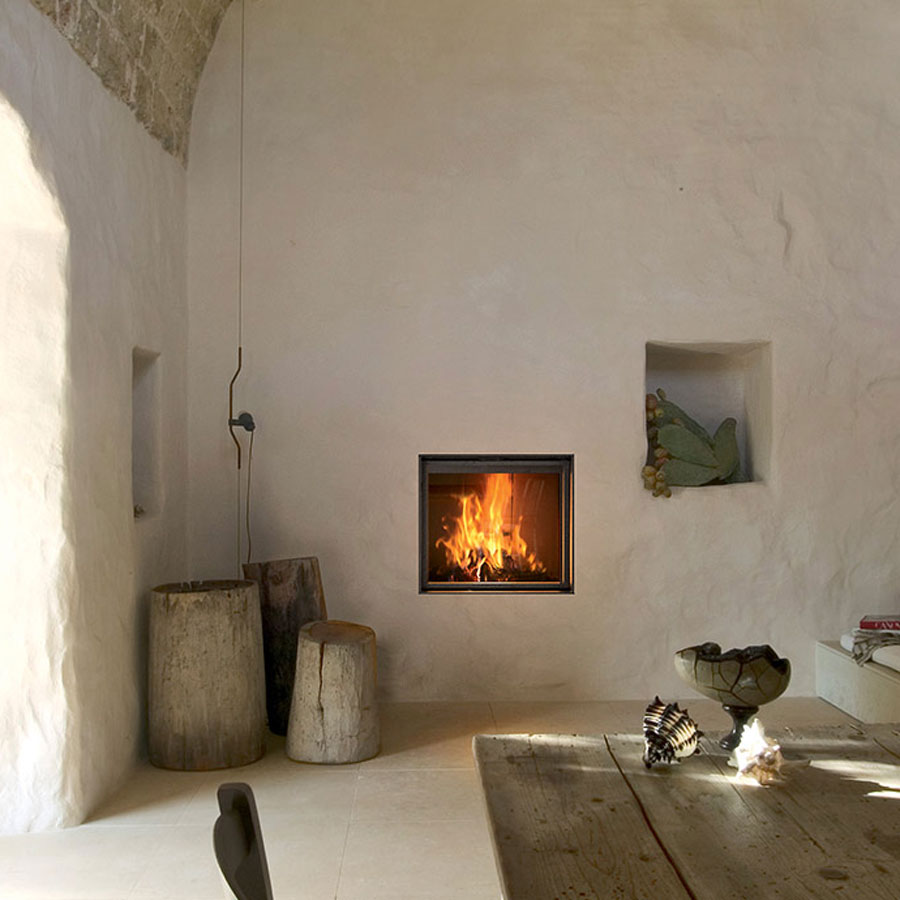

MCZ Plasma 75 Wood

Front wood-burning fireplace with innovative features. It offers high-performance, ease to use and airtight combustion chamber.

Airtight combustion chamber

The airtight combustion chamber and the combustion air inlet (150mm) that can be fully ducted make the fireplace ideal also for energy-efficient homes.

“Environmentally friendly” design

The new combustion is high-performing and efficient in accordance with the strictest regulations in terms of emissions (Ecodesign 2022).

Making the most of heat

Plasma fireplaces are designed to guarantee maximum exploitation of the heat, whether natural convection is used, or forced ventilation is the preferred choice.

All Plasma fireplaces can be teamed with the patented COMFORT AIR® system, that makes it possible to convey the hot air to several rooms – even unconnected – at a distance of up to 8 metres.

In order to maximize natural convection of the fireplace, a version without casing is also available.

Cladding or passe-partout frame

All Plasma fireplaces may be complemented by a 3 mm thick passe-partout compensation frame (optional) for installations without cladding.

Self-cleaning heart in Alutec®

Alutec® is the exclusive material developed and patented by MCZ for all its fireplaces. A patented formula of high alumina content achieved by processing at temperatures of up to 300 °C allows guaranteed self-cleaning of the combustion chamber through a chemical reaction. With its light colour, it makes the flame uniquely bright and even more beautiful.

Opening with handle or cool handle at 90 or 45°

The look of the fireplace can be customized by choosing the handle that blends in best with the room. The “Easy Switch” system offers in fact the option of using either the handle or the cool handle, prioritising ergonomics or very clean aesthetics, respectively. Without handle (cool handle) the doors opens at 90° for cleaning. With handle the door opening is at 45°.

New intuitive and simplified adjustment system

“Easy Going”, the new intuitive and simplified adjustment system, was designed with the user in mind: instead of technical concepts relating to the stages of combustion, there is a simple choice of 5 options corresponding to the actual situations of use of the fireplace:

  • “start” for a quick ignition of the flame
  • “clean”, the air option for the glass cleaning
  • “comfort” for a lively flame with the right balance of primary and secondary air
  • “performance” for a better heat exchange of the fireplace
  • “sleep” for a combustion with very little oxygen to increase the fuel duration

Vaste range of solutions

Plasma collection includes four front models, 75, 85, 95 and 115 centimeters in width, and two dual-faced models, 95 and 115 centimeters in width.


Technical Details

Nominal Output Power (kW) 12.50
Efficiency at Max (%) 80.30
Heatable Volume (m³*) 307/35
Smoke outlet (cm) 20.00
Net weight (kg) 312

(*) Heatable volume refers to the number of cubic metres that can be heated by the product in an insulated room, therefore with an average calorific requirement of 35 kcal/h per m³


Technical Sheet
