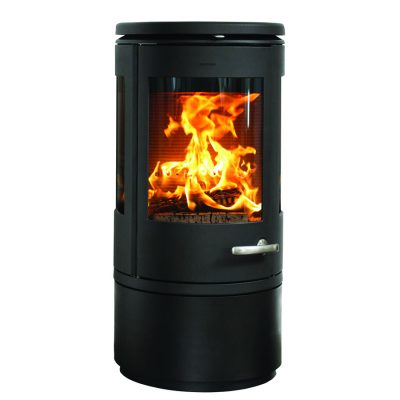

Morsø 7300 series

The Morsø 7300 series invites the homeowner to choose a style for the room.

If the woodpile is to create an atmosphere, choose a model with a wood magazine, which allows the light wood to be visibly on display through a glass screen. If, instead, the style is one of discreet charm, choose a model with a drawer, which elegantly slides in to form part of the stove’s black look

Category:

Description

Technical details

• Convection System
• Airwash system
• Pre-heated combustion air
• Tertiary Air
• Ash Can

Fuel
• Wood

Colors & Variants
• Black

Approvals
• EN/N
• DIN+/AT



Rated output (kw) 4,3
Heat output range (kw) 3-7
Heats up (m2) 45-105
Height (mm)
Morsø 7340 896
Morsø 7342 997
Morsø 7343 997
Morsø 7348 1157
Morsø 7349 1112
Morsø 7393 1118
Width (mm)
Morsø 7340 (mm) 440
Morsø 7342, 7343, 7348, 7349,7393 (mm) 504
Depth (mm)
Morsø 7340 (mm) 377
Morsø 7342, 7343, 7348, 7349, 7393(mm) 435
Flue exit top fits to Ø 150
Flue exit rear fits to Ø 150
Weight (kg)
Morsø 7340 (mm) 105
Morsø 7342 (mm) 121
Morsø 7349 (mm) 112
Morsø 7343, 7348, 7393 (mm) 114
Fire chamber – width
Morsø 7340, 7342, 7343 33
Morsø 7348, 7349, 7393 36
Clearances to combustible materials, behind stove (mm)
Morsø 7340, 7342, 7343 200
Morsø 7348, 7349, 7393 125
Clearances to combustible materials, to the side (mm)
Morsø 7340, 7342, 7343 450
Morsø 7348, 7349, 7393 400

Downloads

Morsø 7340 Manual

Morsø 7340 Declaration of Performance

Morsø 7340 CAD Drawings

Morsø 7340 Stove Dimensions

Morsø 7342 Manual

Morsø 7342 Declaration of Performance

Morsø 7342 CAD Drawings

Morsø 7342 Stove Dimensions

Morsø 7343 Manual

Morsø 7343 Declaration of Performance

Morsø 7343 CAD Drawings

Morsø 7343 Stove Dimensions

Morsø 7348 Manual

Morsø 7348 Declaration of Performance

Morsø 7348 CAD Drawings

Morsø 7348 Stove Dimensions

Morsø 7349 Manual

Morsø 7349 Declaration of Performance

Morsø 7349 CAD Drawings

Morsø 7349 Stove Dimensions

Morsø 7393 Manual

Morsø 7393 CAD Drawings

Morsø 7393 Stove Dimensions
