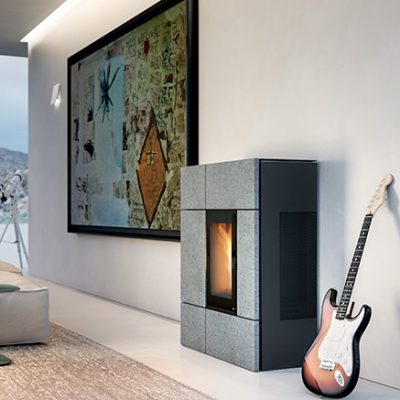

MCZ Boxtherm 60 Pellet

Front pellet steely fireplace insert with forced ventilation and with combustion chamber entirely in cast iron.

EASY-TO-USE

This stove can be easily managed by remote control with few buttons and lots of functions. In addition to the normal daily and weekly programming functions, you can program different temperatures in different time slots during the day. Since the temperature can be read exactly in the spot where it is left (thermostat function), the comfort level is assured.

EXTRACTABLE MACHINE BODY

The whole machine body can be easily extracted for convenient and practical periodic maintenance of the smoke outlet.

NON-INVASIVE INSTALLATION

For those not able to break through the hood, Boxtherm foresees frontal hot air output and pellet loading through a handy extractable drawer in the frontal part.

60% TO 80% SAVINGS

Thanks to the high yield from pellet technology, you can gain savings from 60% to 80% respect to a traditional open fire box burning wood.

Intelligent combustion management with Maestro WI-FI connection.

Description

Technical Details

(Max) nominal output power (kW) 6.10
Minimum output power (kW) 2.40
Efficiency at Max (%) 91.70
Hopper capacity (lt) 13.00
Pellet hourly consumption (Min) (kg/h) 0.60
Pellet hourly consumption (Max) (kg/h) 1.25
Autonomy (Max) (h) 7.00
Heatable volume (m³) * 150
Smoke outlet (cm) 8
Net weight (kg) 80
Temperature of exhaust smoke at Max (ºC) 150
Mass of smoke (g/s) 6.50

(*) Heatable volume refers to the number of cubic metres that can be heated by the product in an insulated room, therefore with an average calorific requirement of 35 kcal/h per m³

Downloads

Technical Sheet

Manual and Installation part 1

Manual and Installation part 2
