MCZ Doc

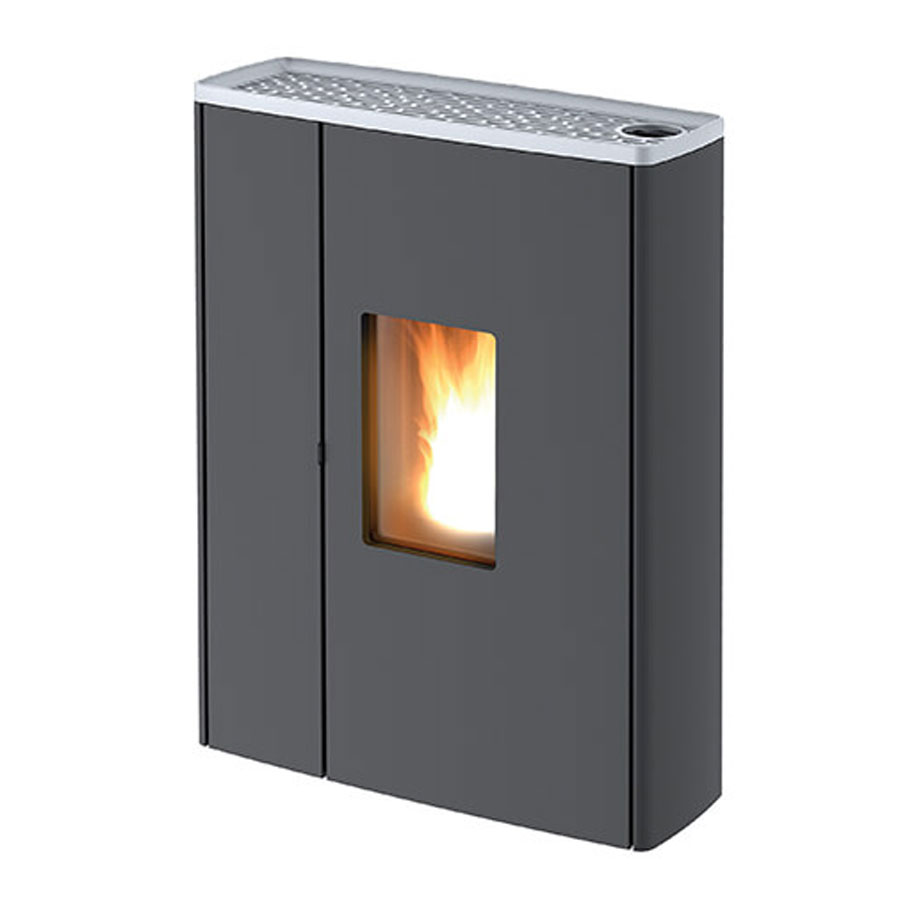

Ductable pellet stove, especially suitable for hallways or confined spaces, thanks to a depth comparable to that of a radiator (30 cm). The extremely clean front, made in black painted steel, houses the fireplace on the right and, on the left, a door to access the pellet hopper. The top features an original geometric design and it comes in painted black or in aluminium cast iron.

Very versatile

The stove is very versatile and it can be adapted to various projects. It has two hot air outlets on the top which can be used at will, keeping them both oriented upwards for a very powerful ventilation or canalizing them (both or just one), in order to heat several rooms at the same time (COMFORT AIR® system). There is an upper smoke outlet, as in the photo, or else one at the back, with no visible flue pipe.

“Environmentally friendly” design

This stove is already compliant with the Ecodesign 2022 directive on emissions and environmental impact.

Sealed structure as standard

Thanks to a perfectly sealed combustion chamber, this product uses up the oxygen taken exclusively from the outside, ensuring reduced consumption and perfect thermal comfort in modern homes, even those with class A energy rating, with no risk of smoke emissions in the room.

Ignition speed

Thanks to a new ceramic spark plug, the flame appears in less than three minutes, with a 40% reduction in ignition times and a significant cut in electrical consumption.

Excludable ventilation

The No-Air function allows you to completely exclude forced ventilation in the stove, ensuring maximum silence and all of the advantages of heat diffused throughout the room by natural convection.

Advanced control via wi-fi included as standard

This stove is one of the first models of the pellet range to have the new Maestro operating system as standard, designed and developed by MCZ to ensure improved stove operation.

The stove can be controlled with an app, which makes it much more intuitive and easy to use than a traditional remote control. All you need to do is install it on your mobile phone or tablet, so you can use it both at home and on the go.

With Maestro it is all inclusive, no other costs are incurred for the Wi-Fi kit, which usually is an accessory to be purchased and installed separately. It comes as standard with a built-in double Wi-Fi module and can be easily connected to your smartphone or domestic network. As an alternative to using your smartphone, an optional handheld remote control is available, with the app already installed.

Moreover, unlike stoves with a built-in sensor, Maestro is provided as standard with a micro sensor that you can place wherever you like, so you can set the temperature you want in every room.

Description

Technical Details

(Max) nominal output power (kW) 9.00
Minimum output power (kW) 2.40
Efficiency at Max (%) 90.20
Efficiency at minimum (h) 90.50
Hopper capacity (lt) 28.00
Pellet hourly consumption (Min) (kg/h) 0.60
Pellet hourly consumption (Max) (kg/h) 2.70
Autonomy (Max) (h) 10.00
Heatable volume (m³) * 221
Smoke outlet (cm) 8
Net weight (kg) 148
Temperature of exhaust smoke at Max (ºC) 190
Mass of smoke (g/s) 7.90

(*) Heatable volume refers to the number of cubic metres that can be heated by the product in an insulated room, therefore with an average calorific requirement of 35 kcal/h per m³

Downloads

DOC CA 9 M1 – Technical Sheet

DOC CA 9 UP! M1 – Technical Sheet
