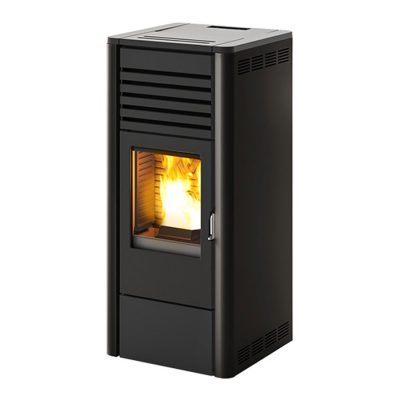

MCZ Ego

Pellet stove with steel structure, steel and cast iron cladding and cast iron brazier. Intelligent combustion management with Maestro WI-FI connection.

This stove is available in the AIR and COMFORT AIR® versions to carry the warm air into other rooms. This stove features a large, natural flame, weekly-emptying ash pan and ceramic ignition plug for quick three-minute ignition.

Available in 8kw and 10kw.

Category:

Description

Technical Details

AIR

(Max) nominal output power (kW) 8.00
Minimum output power (kW) 2.40
Efficiency at Max (%) 90.10
Hopper capacity (lt) 35.00
Pellet hourly consumption (Min) (kg/h) 0.60
Pellet hourly consumption (Max) (kg/h) 1.80
Efficiency at minimum (h) 38.0
Autonomy (Max) (h) 13.00
Heatable volume (m³) * 197
Smoke outlet (cm) 8
Net weight (kg) 111
Temperature of exhaust smoke at Max (ºC) 170
Mass of smoke (g/s) 7.00

(*) Heatable volume refers to the number of cubic metres that can be heated by the product in an insulated room, therefore with an average calorific requirement of 35 kcal/h per m³

COMFORT AIR

(Max) nominal output power (kW) 10.00
Minimum output power (kW) 2.90
Efficiency at Max (%) 90.30
Hopper capacity (lt) 35.00
Pellet hourly consumption (Min) (kg/h) 0.70
Pellet hourly consumption (Max) (kg/h) 2.10
Efficiency at minimum (h) 33.0
Autonomy (Max) (h) 11.00
Heatable volume (m³) * 246
Smoke outlet (cm) 8
Net weight (kg) 113
Temperature of exhaust smoke at Max (ºC) 180
Mass of smoke (g/s) 8.00

(*) Heatable volume refers to the number of cubic metres that can be heated by the product in an insulated room, therefore with an average calorific requirement of 35 kcal/h per m³

TOP SMOKE OUTLET

(Max) nominal output power (kW) 8.00
Minimum output power (kW) 2.40
Efficiency at Max (%) 90.10
Hopper capacity (lt) 35.00
Pellet hourly consumption (Min) (kg/h) 0.60
Pellet hourly consumption (Max) (kg/h) 1.80
Efficiency at minimum (h) 38.0
Autonomy (Max) (h) 13.00
Heatable volume (m³) * 197
Smoke outlet (cm) 8
Net weight (kg) 111
Temperature of exhaust smoke at Max (ºC) 170
Mass of smoke (g/s) 7.00

(*) Heatable volume refers to the number of cubic metres that can be heated by the product in an insulated room, therefore with an average calorific requirement of 35 kcal/h per m³

Downloads

Ego M2 – Manual and Installation Guide Part 1

Ego M2 – Manual and Installation Guide Part 2

Ego UP! M2 – Manual and Installation Guide Part 1

Ego UP! M2 – Manual and Installation Guide Part 2

Ego air 8 M2- Technical Sheet

Ego air 8 UP! M2 – Technical Sheet

Ego CA 10 M2 – Technical Sheet

Ego CA 10 UP! M2 – Technical Sheet
