MCZ Boxtherm 70 Pellet

Front pellet steely fireplace insert with forced ventilation and with combustion chamber in cast iron.

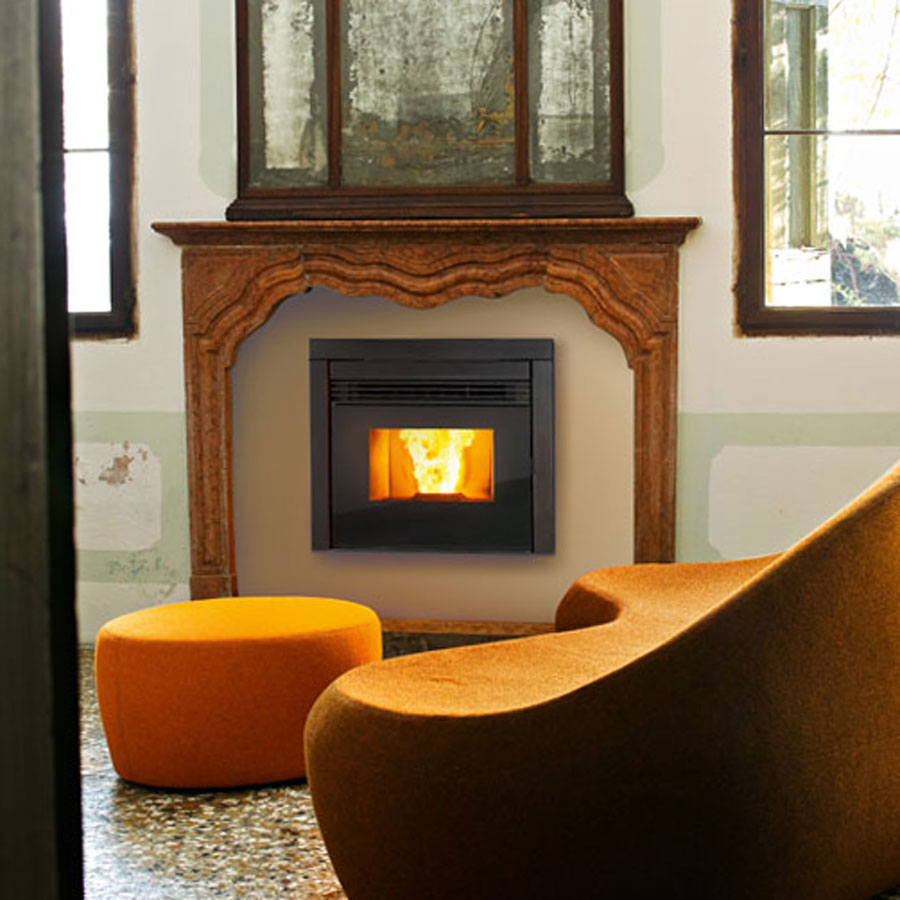

A fireplace with a classic look was recreated next to the dining table. The natural stone cladding (“Pierre de Charente”), created expressly by the same craftsman who did the flooring, serves as a frame for the Boxtherm pellet fireplace insert by MCZ. So here, classic style is combined with pellet technology.- Valerie Damidot.


This stove can be easily managed by remote control with few buttons and lots of functions. In addition to the normal daily and weekly programming functions, you can program different temperatures in different time slots during the day. Since the temperature can be read exactly in the spot where it is left (thermostat function), the comfort level is assured.

60% TO 80% SAVINGS

Thanks to the high yield from pellet technology, you can gain savings from 60% to 80% respect to a traditional open fire box burning wood.

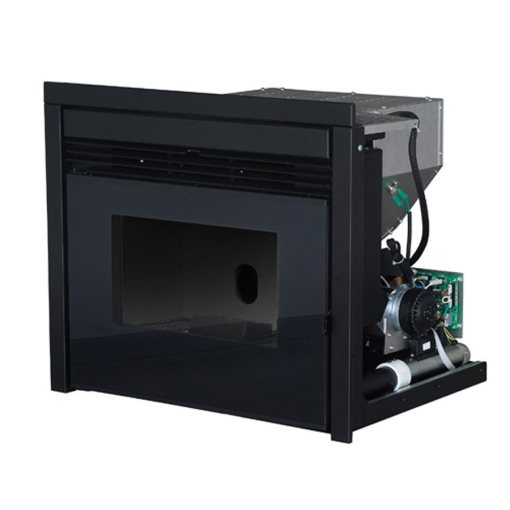

The whole machine body can be easily extracted for convenient and practical periodic maintenance of the smoke outlet.


For those not able to break through the hood, Boxtherm foresees frontal hot air output and pellet loading through a handy extractable drawer in the frontal part.

Intelligent combustion management with Maestro WI-FI connection.


Technical Details

(Max) nominal output power (kW) 8.80
Minimum output power (kW) 2.60
Efficiency at Max (%) 92.70
Hopper capacity (lt) 20.00
Pellet hourly consumption (Min) (kg/h) 0.60
Pellet hourly consumption (Max) (kg/h) 1.80
Autonomy (Max) (h) 9.00
Heatable volume (m³) * 216
Smoke outlet (cm) 8
Net weight (kg) 135
Temperature of exhaust smoke at Max (ºC) 150
Mass of smoke (g/s) 7.4

(*) Heatable volume refers to the number of cubic metres that can be heated by the product in an insulated room, therefore with an average calorific requirement of 35 kcal/h per m³
